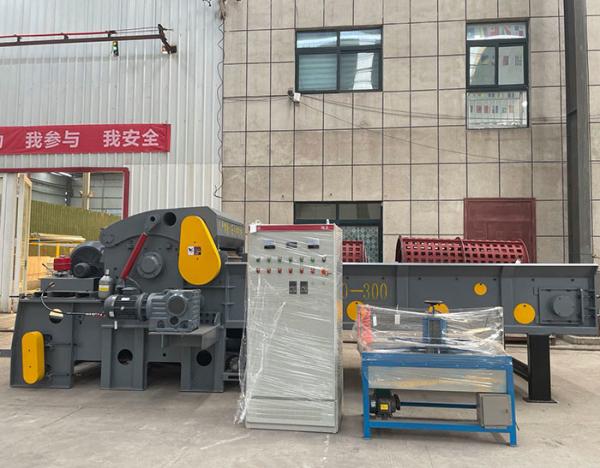

Paper Mill Wood Chipper Machine For Wood Crushing 10t/h

Wood chipper ,also known as wood crushing machine , is designed for wood processing, such as all of small-diameter, slab, logs, core, tree stump, timber, wood branch, brushwood, wooden pallet, large waste wood furniture, such as building templates and variety of non wood raw materials such as all kinds of bulk straw, cotton stalk, reed, wide application range.

Quick checking of Wood Chipper Machin

• Chain belt conveyor feeding ,Q345 steel plate material.(Wood crusher adopts chain plate type intelligent feeding which is guarantee smooth feeding to increase feeding speed .
• Iron removal device.
• The machine can smash wood with nails, and install an iron removing device at the discharge end of the machine to separate the wood from the nails
• Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded parts.
• Hammers of Wood Crusher,hard wood, wood pallets, waste building templates or other wood, for large wood crusher, the chipping room will equip with hammers instead of traditional knifes.

Wood Chipper Machine is mainly used to grinding waste construction formwork, bamboo plywood, wooden shelves, brackets, wooden packing boxes, wooden pallets, etc. The final product is a small wood chip of about 30mm.

The operation principle of the wood pallet crusher also drives the rotor to run at a high speed under the link of the three-belt through the supporting power to crush the materials. The rotor disc of this machine is divided into two parts.
One is hammer type, and the other is blade type. The hammer type rotor is suitable for crushing pallets, building templates, these plate materials with a small number of nails, blade rotationThe sub is suitable for broken branches, sticks and some rounds with larger diameters.

Technical Parameter :

Application Raw Material ；

Wood Chipper Machine is widely used in the pretreatment stage of biomass pellet processing plants, waste template processing plants, bamboo plywood processing plants, wood-based panel plants, composite board plants, power plant boiler raw material combustion, etc., as well as individual wood processing plants.

The spare parts of Industrial Wood Chipper Machine

Spare Parts---Rotary Knife

65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.

Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months

Spare Parts---Fixed Knife

Material: 45# manganese steel Lifetime: around 400-600h
