Special Designed Straw Pellet Mill No Need Fine Grinding
Special designed straw pellet mill is suitable for straw
materials,Straw does not need to be finely crushed again. We can
roughly cut the straw to a length of 5-8cm and the straw can enter
the pellet mill pressing chamber . Or the crushed materials do not
need to be finely screened for direct pelletizeing .
The straw pellet mill can compactly process various agricultural
and forestry biomass wastes and some industrial products' primary
(rough) processing wastes, such as corn straw, cotton stalk, rice
straw, rice husk, peanut shell, leaves, branches, bark, sawdust,
palm silk, mushroom waste sawdust, animal feces, biogas residue,
garbage, etc. into particles or blocks.
Technical Paremater :
Technical parameter :
Model:KL880(vertical)
Main motor power: 160/200KW
Capacity:3-4T/H
Weight: 10-14 tons
Shape parameter (mm): 4200*1500*2200
Roller mode: 3 rollers / automatic locking
Cooling method: circulating water cooling or circulating oil
cooling
14t straw pellet mill
Highligh Advantage of straw pellet mill Machine :
- More economical operation; The wearing parts of the whole machine are only the roller shell
and ring die, which saves 40% of the cost of wearing parts compared with the traditional pellet mill .
- Strong adaptability of materials; The unique feeding and pressing
chamber structure is suitable for different types from ordinary
biomass (such as wood shavings, crushed materials, wood chips,
bamboo chips, rice husks, etc.), paper and plastic, to fiber, and
one machine can be used for multiple purposes to reduce the
granulation risk caused by the change of raw materials.
- The roller bearing is durable; The pressure roller bearing is guaranteed for 2 years. The whole machine adopts the factory's class a precision bearing,
which has the highest bearing pressure in the industry, low heating
coefficient, stable operation and worry free 24-hour operation.
- Straw does not need to be finely crushed; Forced feeding without
power source and super large pressing chamber structure perfectly
adapt to coarse straw materials. Straw materials can be easily granulated without fine powder, and
the cost of straw crushing can be reduced by 50%.
- 24-hour operation; The unique heat exchange system of the whole
series of products can fully meet the 24-hour continuous operation
under harsh conditions and provide supporting services for high
standard owners.
As mentioned above, we are not sealing the assembly as a one-piece
package (this requires replacement of the entire press roll
assembly, which is expensive), and does not only separate the
bearings and separately lubricate them (requires separate cooling
devices) , cost and energy consumption increased), we integrated it
into the gear box, using gear oil lubrication.

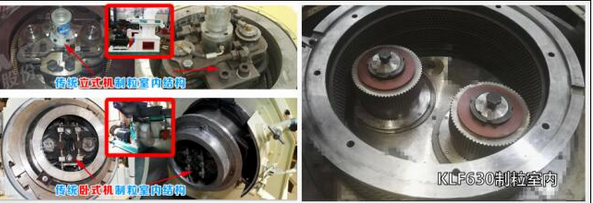

The pelleting chamber space is more than 2 time, and the material
adaptability is more extensive.It can be adapted to the granulation
of bulk or long fiber clogging materials (such as palm silk,
eucalyptus, large shavings and complex plastics, garbage, etc.)
without the need for fine pulverization of materials.
Contact us to get the quotation .
