5T/H Straw Pellet Production Line Agriculture Waste Pellet Production Line

Straw pellet production line is to make various crop straws such as corn straw, wheat straw, barley straw, rice straw, sunflower straw, etc. into pellets. Apex can provide you with customized ring die with different apertures, so you can get straw pellets of different sizes (usually 6-12mm).

Raw material :

Straw and other agriculture waste

Require size: 3--5mm;

Moisture content: 10-15%

Final different size straw pellet

Diameter of final wood pellets: 6mm,8mm,10mm,12mm.

Length of wood pellet: Ajustable wood pellets

Applicate: Home fireplace, power plant etc.

According to the condition of raw material (type,size ,moisture etc ), complete pellete line is divided into:chipping and grinding process ,drying process ,pelleting process,cooling and packing process .

5TPH biomass pellet production line

The main euqipment :

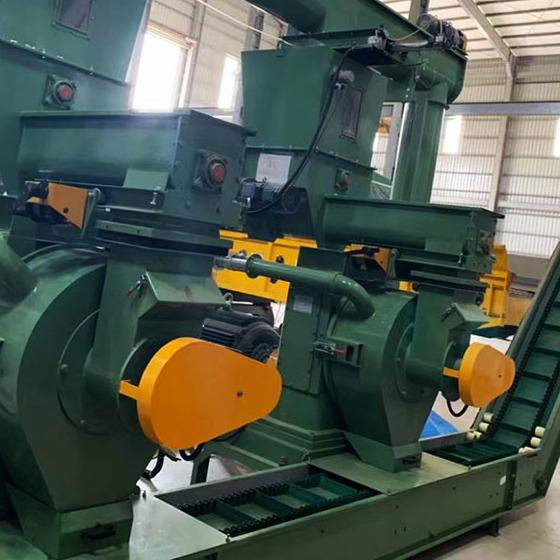

Sawdust Pellet Mill
		Model :420,508 ,650
		Model 420
		Capacity :1-1.5t/h
		Power :90kw
		Weight :3200kg
		Dimension :2500*1100*1600mm
		Model :508
		Capacity :1.5-2t/h
		Power :132kw
		Weight 5300
		Dimension :2800*1500*2500mm
		Model :650
		Capacity :2.5-3t/h
		Power :200kw
Ring die :Customized alloy steel or 4Cr13		Weight 9000kg
		Dimension 3530*1580*2400mm

Note :

1. Even if the same raw material is processed by the same type of Straw Pellets mill , the output will be different due to the state of the raw material, moisture content and other conditions. Please contact us and tell us the status of your raw materials and we will provide more information.

2. Not only 6~10mm, we can customize the final pellet size for you.

3. We can customize each part of the Straw Pellets Press for you such as color, motor brand, voltage, size, function, etc

Generally pellete line processing :

1. Wood chipper :The wood chipping system can make tree trunks and wood log into wood chips with less than 5 cm size . Drum wood chipper is an ideal equipment to produce large capacity and good quality wood chips, which is widely used inwood chips production industry, paper plants, particle and fiber board plants, etc.

2. Grinding processing :The hammer mill system can make wood chips into wood sawdust . The hammer mill is applied mainly to grinding the raw material to make it suiable to make pellets.

3. Drying :To dry materials and remove the moisture from 50 % to 15-17 % . The best moisture content to pelletizing is 13-15%, so our rotary dryer is designed to reduce the moisture of the unqualified raw material, for which the moisture is too high.

4. Pelletizing process:It is suitable for the production of biomass pellets of various biomass raw materials. Using SIEMENS motor, high-precision gear transmission, SKF bearings, and is equipped with a forced feeding device to ensure the smooth operation of the machine. Core component ring die, using 42CrMo.

1. The cooling system can immediately cool the biomass pellets to room temperature. When the pellets come out of the pelletizer, the temperature will be around 70°C, and then through the instant cooling effect of the cooler, the hardness of the pellets will become stronger. So as to obtain better hardness and strength

FAQ:

How did you define your wood sawdust pellet mill model as 420 / 508, etc. ?

The model is defined based on the diameter of the ring die mould.

For example, mould 420 means that the diameter of the ring die is 420 mm.

2) what kind of raw material that the ring die mould is made of?

There are two kinds of ring die mould in the market. one is made of alloy steel, the other is made of stainless steel. the former is cheaper than the latter.

We adopt stainless steel ring die and press roller sheel in our machine.

3) what about the size of the final product wood pellet?

the size is adjustable accroding to your requirement.

the diameter range of the sawdust pellet is ø6-10 mm by using different size of ring die mould.

the length of the pellet could be adjusted by the cutter on the machine.

5) What is the suitable moisture (water content) of the raw material that easy to make pellet?

the ideal moisture range is from 15% to 18% .

6) will you dispatch engineer to install the wood sawdust biomass pellet mill machine (production line)?

Yes. we will dispatch engineer to do the service just based on the requirement of customers.

9) where is your factory located? how could I get there?

Our factory is located in Liyang ,about 80km to Nanjing airport .
